China vibrating feeder

Processing capacity:1-3 to 16-105/th
Max. Feeding size:125 - 250/mm
Motor power:5.5 - 55/kw
Total weight:0.8 - 15.6/t
Feed opening:150×250 - 300×1300/mm
Supply Ability:20 Set/Sets per Month
Feature:Reliable structure, high screen efficiency, low noise, durable usage, easy maintenance

Inquiry Us

Vibrating feeder is also named vibratory feeder, vibrating grizzly feeder, feed grizzly, ore vibrating feeder. It is a kind of linear direction feeding machine. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. It is widely used in mining, building material, silicate and chemical industry in the crushing and screening plants.

Vibrating feeder works to continuously and evenly feed lump, particle and powdery materials from hopper to belt conveyer, bucket elevator, screens and crushing machines, etc. Stepless regulation is available for Hongxing vibrating feeder to automatically and centrally control the feeding volume. Hongxing vibrating feeder can provide ores and rocks within 500mm for the next working procedure.

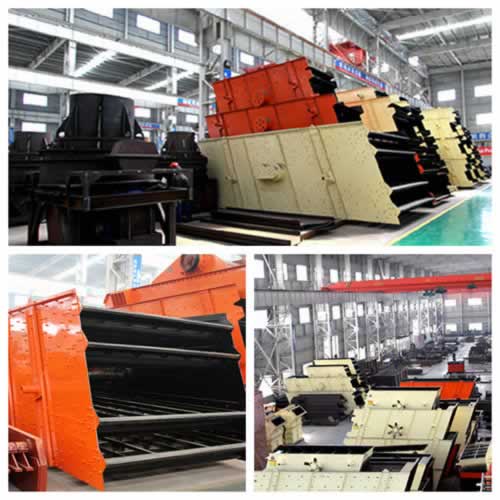

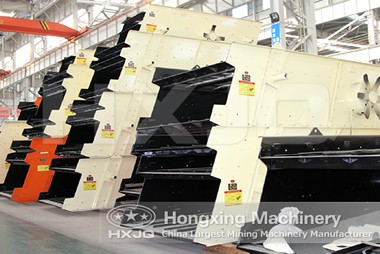

China vibrating feeder

Working Principle of Vibrating Feeder

The electromotor drives the eccentric block of the exciter to rotate with high speed through the v-shaped belt. The eccentric block can produce big eccentric force, and the exciting screen box will do circular motion with certain amplitude. The materials on the slant screen will be influenced by the impulse transmitted from the screen box and do continuous throwing motion, and the materials smaller than the screen hole will go through the screen, thus realizing classifying.



Technical Data

Model
Sieve layer
Sieve area
(m²)
Mesh size
(mm)
Max feeding size
(mm)
Processing capacity
(m³/h)
Vibrating Frequency
(r/min)
Double amplitude
(mm)
Motor power
(kw)
Sieve obliquity
(°)
Sieve specification
(mm)
Total weight
(kg)
Dimensions
(L×W×H)
(mm)
2YK1225
2
6
4-50
400
8-60
800-970
8
5.5
20
1200×2500
3500
2930×1860×870
3YK1225
3
9
4-50
400
10-70
800-970
8
5.5
20
1200×2500
3850
3070×1860×1210
2YK1230
2
7.2
4-50
400
12-78
800-970
8
7.5
20
1200×3000
4200
3430×1860×870
3YK1230
3
10.8
4-50
400
13-80
800-970
8
7.5
20
1200×3700
4600
3570×1860×1210
2YK1237
2
8.88
4-50
400
15-86
800-970
8
7.5
20
1200×3700
4600
4050×1860×870
3YK1237 3 13.22 4-50 400 16-90 800-970 8 7.5 20 1500×3500 5200 4270×1860×1210
2YK1535 2 10.5 5-50 400 20-125 800-970 8 11 20 1500×3500 5890 4120×2210×1230
3YK1535
3
15.75
5-50
400
21-125
800-970
8
11
20
1500×3500
6700
4360×2210×1610
2YK1545
2
13.5
5-50
400
22-150
800-970
8
15
20
1500×4500
6330
5120×2210×1230
3YK1545
3
20.25
5-50
400
22-150
800-970
8
15
20
1500×4500
6800
5360×2210×1610
4YK1545 4 27 5-50 400 22-155 800-970 8 18.5 20 1500×4500 7800 5930×2210×2060
2YK1548
2
14.4
5-50
400
22.5-162
800-970
8
15
20
1500×4800
6980
5420×2210×1230
3YK1548
3
21.6
5-50
400
22.5-162
800-970
11
15
20
1500×4800
7700
5660×2210×1610
4YK1548
4
28.8 5-50 400 22.5-162 800-970 8 18.5 20 1500×4800 8700 6230×2210×2060
2YK1848
2
17.28
5-80
400
25-206
750
8
15
20
1800×4800
9080
5420×2550×1420
3YK1848
3
25.92
5-80
400
32-276
750
8
18.5
20
1800×4800
9600
5660×2550×1780
4YK1848
4 34.54 5-80 400 32-285 750 8 22 20 1800×4800 11100
6290×2550×2160
2YK1854
2
19.44
5-80
400
32-312
800-970
8
18.5
20
1800×5400
10150
5960×2550×1420
3YK1854
3
29.16
5-80
400
32-312
800-970
8
22
20
1800×5400
10840
6260×2550×1780
4YK1854
4 38.88 5-80 400 32-336 800-970 8 30 20 1800×5400 12840
6830×2550×2160
2YK2160
2
25.2
5-100
400
50-475
970
8
30
20
2100×2600
11780
6720×2840×1530
3YK2160 3 37.8 5-100 400
50-475
970 8 30 20 2100×2600 12800 7030×2840×1910
4YK2160
4
50.4
5-100
400
50-497
970
8
37
20
2100×2600
14800
7300×2840×2380
2YK2460
2
28.8
5-100
400
65-550
970
8
37
20
2400×6000
15600
7020×3140×1530
3YK2460
3
43.2
5-100
400
70-620
970
8
37
20
2400×6000
17600
7300×3140×1910
4YK2460
4 57.6 5-100 400 80-680 970 8 45 20 2400×6000 19600 7600×3140×2380
2YK3072 2 14.3 5-100 400 200-700 750 8 22×2 20 3000×7200 23600 7200×4520×4184
3YK3072 3 21.4 5-100 400 230-800 750 8 22×2 20 3000×7200 25500 7200×4520×4684
