Cone crusher

Processing capacity:12-23 to 59-1000/th
Diameter of crushing cone:600 - 2200/mm
Max. Feeding size:35 - 300/mm
Motor power:30 - 280/kw
Total weight:5 - 81.4/t
Swing frequency of main shaft:220 - 356
Width of discharge opening:3-13 to 30-60/mm
Supply Ability:20 Set/Sets per Month
Feature:higher working efficiency, lower energy consumption

Inquiry Us

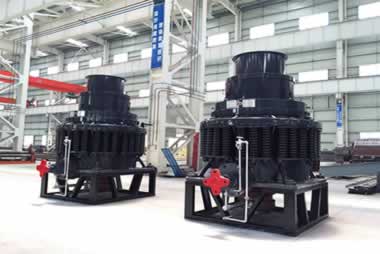

Symons China Cone Crushers

Symons Cone Crushers is well known as the CS series high efficiency cone crusher. Based on the laminated crushing principle and more-crushing and less-milling concept, it is designed to be a modern and high-performance crusher with high frequency, optimized cavity type and reasonable stoke.

Basic Structure of Symons Cone Crusher

Cone crusher

The symons cone crusher is composed of rack, horizontal shaft, moving cone, eccentric sleeve, socket cone, moving cone, fluid coupling, lubrication system, hydraulic pressure system and control system.

For a long time, with the excellent performance and reliability, Hongxing china cone crusher is recognized by the broad masses of customers. With good products and low manufacturing cost, Hongxing china cone crusher is widely used in many industries. With obvious advantages, such as advanced technology, convenient to maintain and easy to operate, Hongxing cone crusher is your best choice in crushing materials.

Technical Data

Model Diameter of crushing cone
(mm)
Max.feeding size
(mm)
Width of discharge opening
(mm)
Processing capacity
(t/h)
Motor power
(kw)
Swing frequency of main shaft Total weight
(t)
Dimensions(L×W×H)
(mm)
PYB
600
600
65
12-25
40
30
356
5
2234×1370×1675
PYD
35
3-13
12-23
5.5
2234×1370×1675
PYB
900
900
115
15-50
50-90
55
333
11.2
2692×1640×2350
PYZ
60
5-20
20-65
11.2
2692×1640×2350
PYD
50
3-13
15-50
11.3
2692×1640×2350
PYB
1200
1200
145
20-50
110-168
110
300
24.7
2790×1878×2844
PYZ
100
8-25
42-135
25
2790×1878×2844
PYD
50
3-15
18-105
25.3
2790×1878×2844
PYB
1750
1750
215
25-50
280-480
160
245
50.3
3910×2894×3809
PYZ
185
10-30
115-320
50.3
3910×2894×3809
PYD
85
5-13
75-230
50.2
3910×2894×3809
PYB
2200
2200
300
30-60
59-1000
280-260
220
80
4622×3302×4470
PYZ
230
10-30
200-580
80
4622×3302×4470
PYD
100
5-15
120-340
81.4
4622×3302×4470
