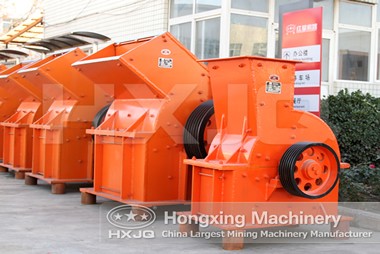

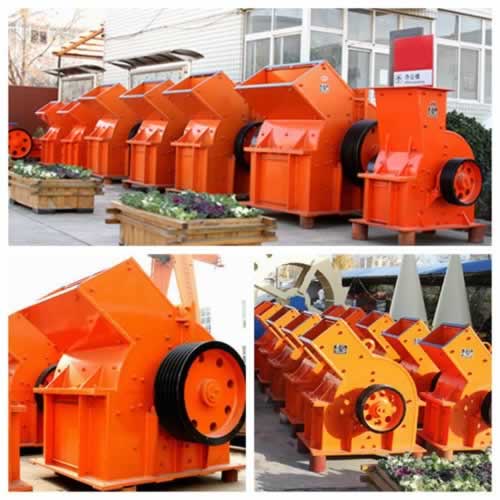

Hammer crusher

Feeding Size:≤200 -- ≤350/mm
Discharging size:≤25 -- ≤35/mm
Capacity: 5-10 -- 100-150(m³/h)
Motor power: 11-- 480/kw
Total weight: 0.8 -- 37.5/t
Supply Ability: 20 Set/Sets per Month
Feature: Wear resistance, Easy maintenance, Compact structure

Inquiry Us

Hammer crusher machine is suitable for crushing all kinds of medium hard materials with weak corrosivity. The materials to be crushed by this machine should be no more than 100MPa in compression strength, and less than 15% in water content rate. It can be used for crushing coal, salt, chalk, gypsum, tile and limestone, and it can also be used for crushing fiber structure, elastic mood pieces, paper or crushing the asbestos cement for recycling asbestos fiber. In addition, the hammering machine can be used not only in crushing production line and sand making production line, but in the ore dressing line for replacing cone crusher.

Major Types of Hammer Crusher

Hammer crusher

The common hammer mill includes single-rotor type and double-rotor type. According to the arrangement of the hammer on the rotary table, it can also be divided into single-row hammer mill and multi-row hammer mill, and the rotary direction of the rotor includes reversible type and irreversible type. In addition, there is still simple type hammer mill such as ring hammer mill crusher. Among them, the most widely used is single-rotor single-row hammer mill.

Technical Data

Specifications
Feeding Size
(mm)
Discharging size
(mm)
Capacity
(m³/h)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PCΦ400×300
≤200
≤25
5-10
11
0.8
900×670×860
PCΦ600×400
≤250
≤30
10-22
22
2.26
1200×1050×1200
PCΦ800×600
≤250
≤35
18-40
55
4.8
1310×1180×1310
PCΦ1000×800
≤350
≤35
25-50
75
5.9
1600×1390×1575
PCΦ1000×1000
≤350
≤35
30-55
90
8
1800×1590×1775
PCΦ1250×1250
≤350
≤35
35-65
132
14
2060×1600×1890
PCΦ1400×1400
≤350
≤35
50-100
280
32
2365×1870×2220
PCΦ1600×1600
≤350
≤35
100-150
480
37.5
3050×2850×2800
