Belt conveyor
Belt width:500 - 1600/mm
Power:3 - 15/kw
Conveying length:≤10 - ≤12/m
Conveying speed:1.3-1.6 to 1.3-2.0m/s
Conveying capacity:78-191 to 1069-2195t/h
Supply Ability:35 Set/Sets per Month
Feature:Easy to use
Belt width:500 - 1600/mm
Power:3 - 15/kw
Conveying length:≤10 - ≤12/m
Conveying speed:1.3-1.6 to 1.3-2.0m/s
Conveying capacity:78-191 to 1069-2195t/h
Supply Ability:35 Set/Sets per Month
Feature:Easy to use
Belt conveyor, also called continuity conveyor, is a kind of machinery transporting materials in a certain line continuously. Its transmission line is generally constant, and able to take horizontal or tilting transmission as well as form space transmission lines. The machine has a great transmission capacity and long distance, which can also achieve some process operations simultaneously.
The belt conveyor is the ideal highly efficient and continuous transmitting equipment. Compared with other transportation equipment, it has many advantages such as long transportation distance, big transportation quantity, continuous transportation, reliable operation and easy realization of automation and centralized control.

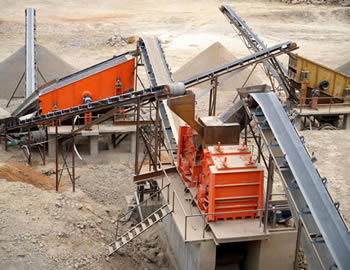

Elevating conveyor belt can be used in the level transportation and tilt transportation, whose usage is very convenient, and which can be applied in the various modern industries such as the tunnel underground mining, the transporting system of mining surface, open exploration jobsites and ore dressing factory. Hongxing Machinery is a big belt conveyor manufacturing enterprise, and the mining belt equipment produced by our company can be specially designed for every client, it's our honor to welcome you to our company to choose every mining machine that you need.
Belt conveyor made by our company has the advantages of large transportation amount, simple structure, convenient maintenance, standard components and so on. It is widely used in mining, metallurgy, coal and other departments in order to transport loose materials and finished products. Based on the transmission process requirements, all kinds of transmission methods are available to meet the needs of different operation lines.
Working temperature is between -20℃ and +40℃ and the temperature of conveyed material is under 50℃.
|
Belt width (mm)
|
Conveying length(m)
Power(kw)
|
Conveying speed (m/s) | Conveying capacity(t/h) | ||
| 500 |
≤12
----- 3 |
12-20
----- 4-5.5 |
20-30
----- 5.5-7.5 |
1.3-1.6 | 78-191 |
| 650 |
≤12
----- 4 |
12-20
----- 5.5 |
20-30
----- 7.5-11 |
1.3-1.6 | 131-323 |
| 800 |
≤6
----- 4 |
6-15
----- 5.5 |
15-30
----- 7.5-15 |
1.3-1.6 | 278-546 |
| 1000 |
≤10
----- 5.5 |
10-20
----- 7.5-11 |
20-40
----- 11-22 |
1.3-2.0 | 435-853 |
| 1200 |
≤10
----- 7.5 |
10-20
----- 11 |
20-40
----- 15-30 |
1.3-2.0 | 655-1284 |
| 1400 |
≤10
----- 11 |
<10-20
----- 18.5 |
<20-40
----- 22-37 |
1.3-2.0 | 893-1745 |
| 1600 |
≤10
----- 15 |
<10-20
----- 22 |
<20-40
----- 30-45 |
1.3-2.0 | 1069-2195 |
