Capacity:0.65-2 to 108-615t/h
Feeding size:≤20 - ≤25/mm
Ball load:1.5 - 338/t
Discharging size:0.074-0.89/mm
Motor power:18.5 - 4500/kw
Total weight :5.5 – 525/t
Material handling:cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

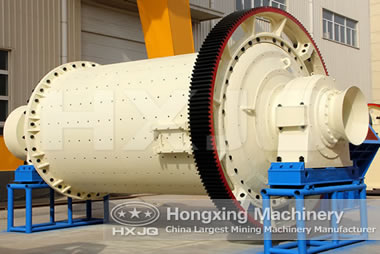

Grate-type ball mill, used for grinding various ores and other materials, is widely used in mineral processing, construction and chemical industry and other economic departments.
.jpg)
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liners and ripple liners and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and the steel balls will fall down to impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
