Processing capacity: 10-100 to 80-600t/h
Motor power: 5.5×2 - 11×2/kw
Feeding size: ≤200 - ≤300/mm
Total weight : 2250 - 9950/kg
Sieve layer: 1 - 2
Mesh size:4-50 to 5-150/mm
Double amplitude:6-8 to 8-10/mm
Supply Ability:20 Set/Sets per Month
Feature:Big output, simple structure, easy maintenance
A vibrating screen is a classifying screen which divides the mixed materials with different grain size into a number of different levels of granularity through single or multilayer screen surface. There are mainly two varieties: circular vibrating screen and linear vibrating screen. Circle vibrating screen's movement locus is a circumference.
Linear vibrating screen is widely used for screening any dry materials whose diameter is 0.074-15mm and the biggest feeding granularity is less than 20mm. This sieve shaker machine is widely used for the classification and separation of powdery and medium and small-granularity materials in metallurgy, chemistry, fertilizer, medicine, food, ceramics, coal, refractory and building material industry.

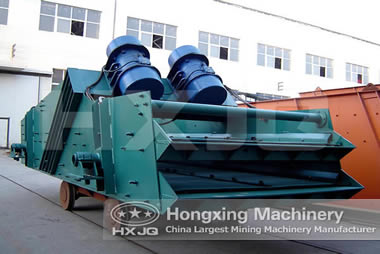

The advantages of this series of screens are as follows: stable operation, low energy consumption, low noise, high efficiency and long service life. ZSG linear vibrating screen uses vibrating motor as vibration source and makes forward motion in a straight line. This device can be equipped with single or multilayer screen to achieve the grading, impurity removing, powder sifting and testing purposes. The main components are: motor, screen, frame, input and output hopper, etc.
| Model | Sieve specification(L×W) | Sieve layer | Mesh size | Feeding size | Processing capacity | Motor power | Total weight | Vibrating frequency | Double amplitude | Sieve obliquity | Dimensions (L×W×H) |
| (mm) | (mm) | (mm) | (t/h) | (kw) | (kg) | (Hz) | (mm) | (℃) | (mm) | ||
| ZSG1237 | 3700×1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5×2 | 2250 | 16 | 6-8 | 15 | 3800×2050×1920 |
| 2ZSG1237 | 3700×1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5×2 | 3345 | 16 | 6-8 | 15 | 3800×2050×2200 |
| ZSG1443 | 4300×1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4100 | 16 | 6-8 | 15 | 4500×3040×2500 |
| 2ZSG1443 | 4300×1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4900 | 16 | 6-8 | 15 | 4500×3040×2700 |
| 3ZSG1443 | 4300×1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5×2 | 5870 | 16 | 6-8 | 15 | 4500×3040×2820 |
| 2ZSG1548 | 4800×1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5×2 | 5836 | 16 | 8-10 | 15 | 4800×3140×2814 |
| 3ZSG1548 | 4800×1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5×2 | 6900 | 16 | 8-10 | 15 | 4799×3140×3014 |
| 2ZSG1848 | 4800×1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5×2 | 6489 | 16 | 8-10 | 15 | 4799×3440×2814 |
| 3ZSG1848 | 4800×1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5×2 | 7750 | 16 | 8-10 | 15 | 4799×3440×3014 |
| 4ZSG1848 | 4800×1800 | 4 | 5-50 | ≤200 | 50-500 | 11×2 | 8300 | 16 | 8-10 | 15 | 4799×3440×3503 |
| 2ZSG1860 | 6000×1800 | 2 | 5-150 | ≤300 | 80-600 | 11×2 | 9950 | 16 | 8-10 | 15 | 6000×3440×3326 |
