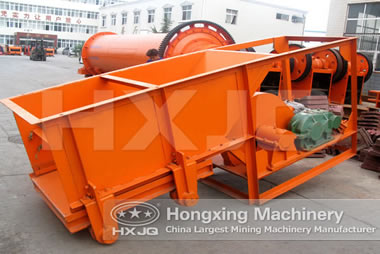

Chute feeder

Supply Ability:30 Set/Sets per Month
Port:Qingdao,Tianjin, Shanghai or others
Feature:Easy to operate, Small power consumption, Low noise

Inquiry Us

Chute feeder is widely used in the coal transmitting and thermal power plant. It can also be used in construction, chemistry, metallurgy and mine departments, etc.

The chute feeder can be installed on the ground or onto discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/min and the stroke is 20-200 mm. Stroke can be adjusted by the eccentric wheel; the eccentric throw is half of the stroke. According to experience of some mine sites, the eccentric throw should no less than 30 mm for cohesive ore.

The width of the chute is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500 mm. The most common specification is 980*1240 chute feeder, with feeding granularity between 350-0 mm, which is the best partner of 400*600 jaw crusher.

The mineral feeding machine produced by Hongxing feeder manufacturer can be classified into the structure of steel plate and grid section, and the mineral feeding machine with the structure of steel plate can be used in the sand and gravel production line in order to feed the material into the crushing machine wholly and stably; the ore feeding machine with the structure of grid section can be used for coarse screening, which has become one invincible mining machine in the crushing and screening equipment with one advantage of the reasonable arrangement.

Technical Data

Specification Discharge opening(W×H)
(mm×mm)
Max.feeding size
(mm)
Reciprocating frequency of trough
(min-1
Feeding capacity
(t/h)
Power
(kw)
Dimensions(L×W×H)
(mm×mm×mm)
Total weight
(kg)
600×500 600×500 205 38.9 10.5-25.5 4 2750×910×855 1054
980×1240 980×1240 350 23.7 36-90 7.5 3560×1000×1070 1700
1000×1900 1000×1900 300 27 300 7.5 3900×1590×1340 2691
