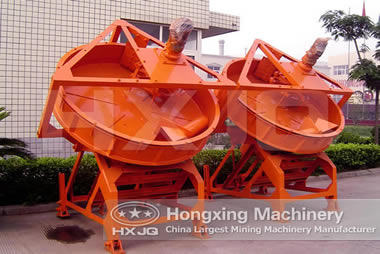

Disk feeder
Supply Ability:20 Set/Sets per Month
Warranty:12 Month
Production capacity:4-24t/h
Feature:Flexibility,Reduced power consumption,Smooth starting
Supply Ability:20 Set/Sets per Month
Warranty:12 Month
Production capacity:4-24t/h
Feature:Flexibility,Reduced power consumption,Smooth starting
The disk feeder is feeding equipment of calculated by cubage can feed to next procedure evenly, continuously suitable for feeding various non stickiness, not suitable for high flowing property power material, suitable for feeding the ore, coal, cement, Chalmette, limestone, clutch etc pwoer, grainy or small pieces materials.
Disk feeder is applicable to the feeding of 20mm ore powder. Disk feeder is mainly composed of drive device, feeder ontology, metrology and measurement devices and other components. The belt speed of the measuring belt conveyor is smaller than 1m/s and to measure the belt speed, a speed detector is equipped and to prevent the measuring roll from deflecting, a detection pole is equipped for the adjustment.
| Specification | KR1000 | KR1500 | KR2000 | BR1000 | BR1500 | BR2000 |
| Disk diameter(mm) | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 |
| Disk rotation speed(r/min) | 7.5 | 7.5 | 7.5 | 6.3 | 6.3 | 4.79 |
| Max.feeding size(mm) | <50 | <50 | <50 | <50 | <50 | <50 |
| Feeding capacity(m³/h) | 14 | 25 | 100 | 13 | 30 | 80 |
| Power(kw) | 2.2 | 5.5 | 11 | 3 | 7.5 | 11 |
| Weight(kg) | 740 | 1280 | 1754 | 1400 | 2705 | 5234 |
