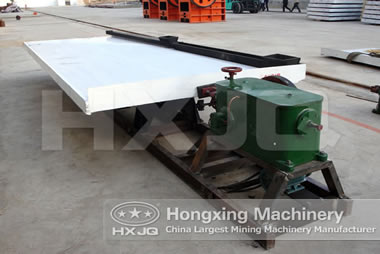

Concentrator table
Supply Ability:40 Set/Sets per Month
Certificate:ISO9001:2008
Production capacity:10-60t/h
Feature:Low energy consumption, Good efficiency, Simple operation
Supply Ability:40 Set/Sets per Month
Certificate:ISO9001:2008
Production capacity:10-60t/h
Feature:Low energy consumption, Good efficiency, Simple operation
Concentator table is a mine selecting machine for fine materials working by gravity. Concentrator table is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Hongxing Machinery has a long history of concentrator table production and insists on constant innovation. We provide a variety of concentrator tables with high processing capacity, high recovery rate and high enrichment ratio.

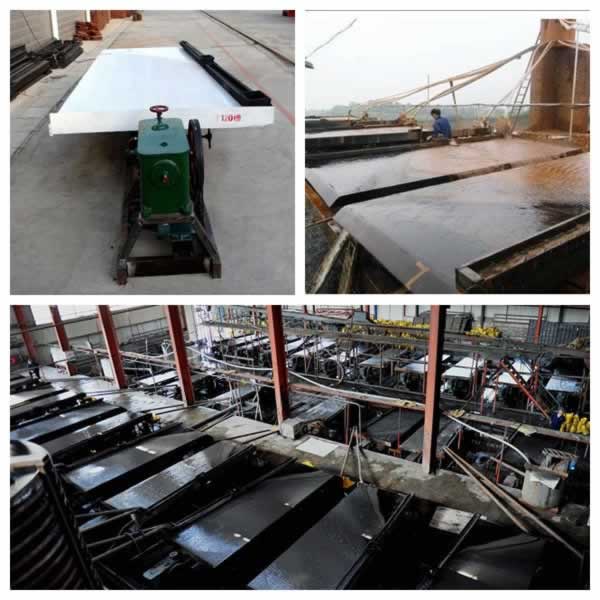

Concentrator tables are designed to wet gravity-based separation of minerals and other granular materials. There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
Purchasing concentrator table not only emphasizes the price of concentrator table but also quality and scale of company. It is good to visit companies. Hongxing Machinery has large scale, advanced technology, good after-sale service and reasonable concentrator table price. Welcome new and old customers to order!
|
Name
|
Unit
|
Grit concentrator table
|
Fine sand concentrator table
|
Sludge concentrator table
|
|
|
Dimensions
|
Length
|
MM
|
4450
|
4450
|
4450
|
|
Driving part width
|
MM
|
1855
|
1855
|
1855
|
|
|
Concentrate part width
|
MM
|
1546
|
1546
|
1546
|
|
|
Max.feeding size
|
MM
|
2
|
0.5
|
0.15
|
|
|
Feeding amount
|
T/d
|
30-60
|
10-20
|
15-25
|
|
|
Feeding thickness
|
%
|
25-30
|
20-25
|
15-25
|
|
|
Journey
|
MM
|
16-22
|
11-16
|
8-16
|
|
|
Frequency
|
F
|
15-48
|
48-53
|
50-57
|
|
|
Water quantity
|
T/d
|
80-150
|
30-60
|
10-17
|
|
|
Horizontal obliquity
|
Degree
|
2.5-4.5
|
1.5-3.5
|
1-2
|
|
|
Portrait obliquity
|
%
|
1.4
|
0.92
|
----
|
|
|
Table board corner
|
Degree
|
32-42
|
40
|
42
|
|
|
Concentrating square
|
----
|
7.6
|
7.6
|
7.6
|
|
|
Table board length ratio
|
----
|
2.6
|
2.6
|
2.6
|
|
|
Motor power
|
KW
|
1.1
|
1.1
|
1.1
|
|
