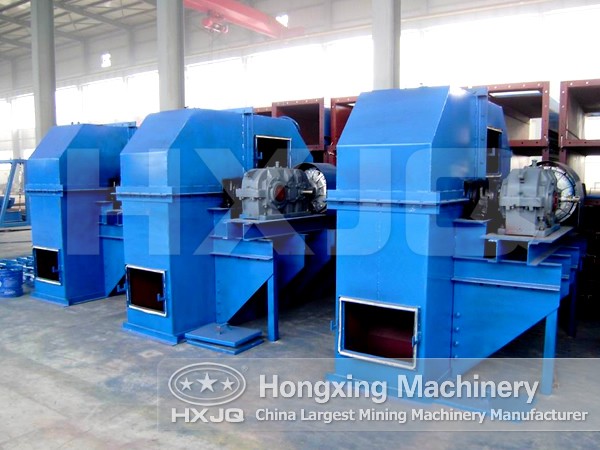

Bucket Elevator

The bucket elevator is suitable for elevating materials from a lower level to a higher level and the materials are conveyed upward in an automatic and continuous manner through the vibrating station.

Inquiry Us

The bucket elevator is suitable for elevating materials from a lower level to a higher level and the materials are conveyed upward in an automatic and continuous manner through the vibrating station. This elevator bucket has many advantages such as big conveying quantity, high elevating height, stable and reliable operation and long service life.

The bucket type lifter and plate chain bucket elevator are the two most commonly seen types. They usually adopt flow type feeding. The materials will be raised to the top by the plate chain. Under the gravity, it discharges automatically. This machine is available in various specifications and features with high efficiency and low energy consumption. Generally, it adopts closed-circuit casing, so it is outstanding with low noise and long service life.

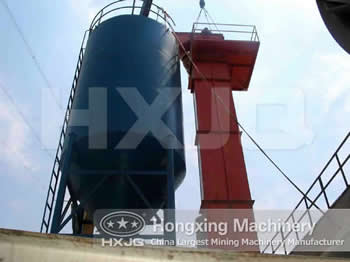

Bucket Elevator

Notes In Use And Maintenance Of Bucket Elevator

1. Start it with empty load. Remove all the materials in the hopper before stopping the machine.

2. Avoid machine inversion. Inversion may lead to chain derailment phenomenon.

3. Keep uniform feeding. Sudden increase of the volume of feeding is prohibited. Feeding amount cannot exceed the transmission capacity of the hoist.

4. Add oil timely and appropriately.

5. Promptly replace the chain and hopper if it is seriously worn or damaged.

Working Principle Of Hoist Conveyor

The materials are scooped up by the hopper and brought to the top along with the conveyor belt or conveyor chain, and then the materials will roll down after bypassing the top wheel, and the bucket elevator will pour the materials to the receiving chute. The driving belt of bucket elevator with driving belt often uses rubber belt which is installed on the upper or lower transmission drum and the upper or lower redirection transmission drum. Hoist conveyor with chain drive is often installed with two parallel transmission chains, and there is a pair of transmission sprocket on the lower or upper part and a redirection chain wheel on the upper or lower part. Hoist conveyor is often installed with enclosure to avoid dust pollution.

Technical Data

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
