Ceramic Sand Kiln
Ceramic sand kiln is a kind of efficient rotary cylinder machine used for burning various materials and it is is composed of rotating cylinder, supporting device, head part, sealing device and discharging part.
Ceramic sand kiln is a kind of efficient rotary cylinder machine used for burning various materials and it is is composed of rotating cylinder, supporting device, head part, sealing device and discharging part.
Ceramic sand kiln is a kind of efficient rotary cylinder machine used for burning various materials. It is the ideal calcination equipment and it can be widely used in ferrous metallurgy, non-ferrous metallurgy, chemical industry, building materials (cement), non-metallic minerals, refractory materials, papermaking, environmental protection and other industries. Also, it is featured with high unit volume, long service life, high operation rate, stable running, high heat transfer efficiency and low power consumption.

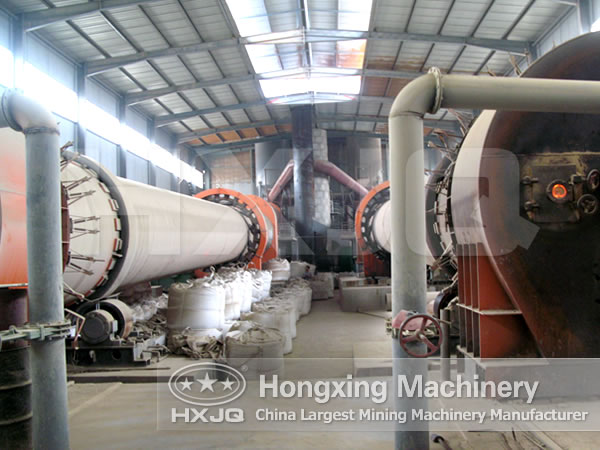

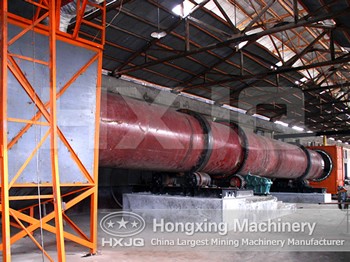

This rotary kiln is composed of rotating cylinder, supporting device, head part, sealing device and discharging part. The body of kiln supported by the riding wheel has a certain inclination and also it is equipped with control system. In addition to the main drive device, the transmission parts also have the auxiliary transmission part to ensure that the kiln can still run without deformation when the power fails. The head part adopts shell sealing; the bottom part adopts axial-contact sealing ways to ensure the reliability of running.
In ferrous metallurgy industry, the rotary kiln can be used in the production of iron oxide pellets, direct reduction of iron ore concentration, ultra-fine iron ore concentration and high-ash recycling; In non-ferrous metallurgy, the rotary kiln can also be used in oxidizing roasting, reduction roasting, sulfating roasting, satisfied roasting, chlorination roasting, segregation roasting, and alumina production.
| Product Specification （m） |
Kiln dimensions | Motor power （kw） |
Total weight （t） |
note | ||||
| Diameter （m） |
Length （m） |
Obliquity （%） |
Capacity （t/d） |
Rotation speed （r/min） |
||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
| Φ3.0×60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | 310 | ------ |
| Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
