Processing capacity:12-23 to 59-1000/th
Diameter of crushing cone:600 - 2200/mm
Max. Feeding size:35 - 300/mm
Motor power:30 - 280/kw
Total weight:5 - 81.4/t
Swing frequency of main shaft:220 - 356
Width of discharge opening:3-13 to 30-60/mm
Supply Ability:20 Set/Sets per Month
Feature:higher working efficiency, lower energy consumption

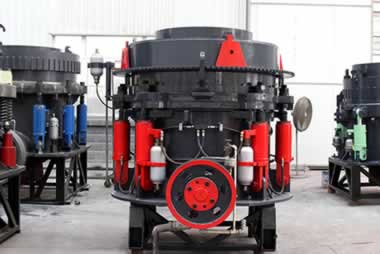

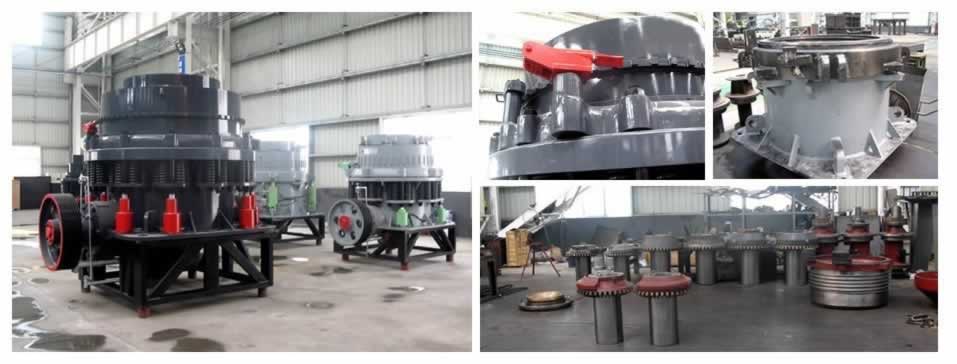

The compound crusher, which is also called compound cone crusher, is mainly composed by driving device, main shaft, drum, upper cap and the foundation. The electric motor drives the main shaft to rotate with the help of the ladder-shaped triangle belt, and the main shaft is equipped with hammer. The materials go inside the machine from the upper material feeding mouth and fall down under gravity, and then the materials will be crushed under a series of impact of the hammer at high rotation rate, and finally be discharged from the lower material discharging mouth.
The compound cone crusher can be used for fine crushing limestone, clinker, coal and other kinds of ores and rocks in building material, mining, metallurgy and chemistry, and at the same time it can also be applied in fine crushing medium hard materials such as dolomite, flint clay, lead-zinc deposit, high slag, coal gangue, rock phosphate, especially suitable for hard limestone, dolomite, granite and basalt of artificial sand making and highway surface stone material processing and crushing.
The materials vertically fall into the impeller with high rotary speed from the upper part of the machine, and under the effect of high speed eccentric force, the materials will hit and crush the other part of materials which shunt around the impeller with the shape of umbrella. After the materials are hit each other inside the combination crusher, they will hit, rub with each other between the impeller and machine shell and then crushed, and finally they will be discharged from the lower part, forming a closed-circuit cycle. The granularity of the final products is controlled by the screening equipment.
| Specifications | Model | Cavity | Large end diameter of crushing cone （mm） |
Adjusting range of discharge opening （mm） |
Feed opening size of the open edge when recommending the min.discharge opening （mm） |
Max.feeding size （mm） |
Processing capacity （m³/h） |
Main motor power (kw) |
Weight (kg) |
Dimensions （L×W×H） （mm） |
| Ф600 |
PYFB-0607 | Standard fine type | 600 | 6-38 | 72 | 61 | 16-54 | 22 | 4490 | 2195×1540×1651 |
| PYFB-0609 | Standard coarse type | 9-38 | 109 | 93 | 18-68 | |||||
| PYFB-0610 | Standard extremely coarse type | 13-38 | 109 | 93 | 23-72 | |||||
| PYFB-0603 | Short head fine type | 3-13 | 35 | 30 | 9-36 | 4580 | ||||
| PYFD-0605 | Short head coarse type | 5-16 | 51 | 43 | 16-50 | |||||
| Ф900 |
PYFB-0910 | Standard fine type | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| PYFB-0917 | Standard coarse type | 13-38 | 175 | 150 | 59-163 | |||||
| PYFB-0918 | Standard extremely coarse type | 25-38 | 178 | 150 | 118-163 | |||||
| PYFD-0904 | Short head fine type | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PYFD-0906 | Short head medium type | 3-16 | 76 | 65 | 27-100 | |||||
| PYFD-0907 | Short head coarse type | 6-19 | 102 | 85 | 59-129 | |||||
| Ф1300 | PYFB-1313 | Standard fine type | 900 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| PYFB-1321 | Standard medium type | 16-38 | 210 | 178 | 132-253 | |||||
| PYFB-1324 | Standard coarse type | 19-51 | 241 | 205 | 172-349 | |||||
| PYFB-1325 | Standard extremely coarse type | 25-51 | 259 | 220 | 236-358 | |||||
| PYFD-1306 | Short head fine type | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PYFD-1308 | Short head medium type | 6-16 | 89 | 76 | 82-163 | |||||
| PYFD-1310 | Short head coarse type | 8-25 | 105 | 89 | 109-227 | |||||
| PYFD-1313 | Short head extremely coarse type | 16-25 | 133 | 113 | 209-236 | |||||
| Ф1600 | PYFB-1620 | Standard fine type | 1676 | 16-38 | 209 | 178 | 181-327 | 250 | 43270 | 3641×2954×3771 |
| PYFB-1624 | Standard medium type | 22-51 | 241 | 205 | 258-417 | |||||
| PYFB-1626 | Standard coarse type | 25-64 | 269 | 228 | 299-635 | |||||
| PYFB-1636 | Standard extremely coarse type | 38-64 | 368 | 313 | 431-630 | |||||
| PYFD-1607 | Short head fine type | 5-13 | 70 | 60 | 90-209 | 43870 | ||||
| PYFD-1608 | Short head medium type | 6-19 | 89 | 76 | 136-281 | |||||
| PYFD-1613 | Short head coarse type | 20-25 | 133 | 113 | 190-336 | |||||
| PYFD-1614 | Short head extremely coarse type | 13-25 | 133 | 113 | 253-336 | |||||
| Ф2100 | PYFB-2127 | Standard fine type | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4631×3302×4638 |
| PYFB-2133 | Standard medium type | 25-51 | 334 | 284 | 862-1424 | |||||
| PYFB-2136 | Standard coarse type | 31-64 | 369 | 314 | 1125-1814 | |||||
| PYFB-2146 | Standard extremely coarse type | 38-64 | 460 | 391 | 1252-1941 | |||||
| PYFD-2110 | Short head fine type | 5-16 | 105 | 89 | 218-463 | 89500 | ||||
| PYFD-2113 | Short head medium type | 10-19 | 133 | 113 | 404-580 | |||||
| PYFD-2117 | Short head coarse type | 13-25 | 178 | 151 | 517-680 | |||||
| PYFD-2120 | Short head extremely coarse type | 16-25 | 203 | 172 | 580-744 |
