Cone Breaker

Hongxing machinery is a China cone crusher manufacturer, which is known for the largest exporter of China cone crusher for five years.

Inquiry Us

Introduction Of Cone Crusher

A cone crusher is similar in operation to a gyratory crusher, with less steepness in the crushing chamber and more parallel zone between crushing zones. A cone crusher breaks rock by squeezing the rock between an eccentrically gyrating spindle, which is covered by a wear resistant mantle, and the enclosing concave hopper, covered by a manganese concave or a bowl liner. As rock enters the top of the cone crusher, it becomes wedged and squeezed between the mantle and the bowl liner or concave. Large pieces of ore are broken once, and then fall to a lower position (because they are now smaller) where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher.

A cone crusher is suitable for crushing a variety of mid-hard and above mid-hard ores and rocks. It has the advantage of reliable construction, high productivity, easy adjustment and lower operational costs. The spring release system of a cone crusher acts an overload protection that allows tramp to pass through the crushing chamber without damage to the crusher.

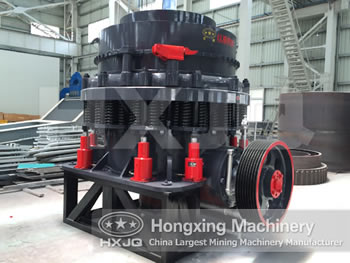

Cone Crusher

Types Of Cone Breaker

Symons cone crusher、secondary cone crusher、hydraulic cone crusher、china cone crusher、spring cone crusher, CS series high efficiency spring cone crusher, HPC Hydraulic cone crusher, HCS high efficiency hydraulic cone crusher, etc.

Hydraulic cone crusher

HPC series hydraulic cone crusher designed by our company is a new type of cone crusher with international advanced level which brings in Germanic technology. Our hydraulic cone crusher greatly increases the production capacity, crushing efficiency and it is suitable for replacing spring cone crusher and common hydraulic cone crusher in the mining and construction industry. HPC series hydraulic cone crusher is the most ideal equipment for large-scale stone factory and mining crusher.

Symons cone crusher

HXJQ CO.LTD is a professional symons cone crusher manufacturer and exporter in China. We are specialized in symons cone crusher. These products are delivered to Europe, United States, Asia, the Middle East, Russia, Africa etc. We are expanding more cooperation partners all over the world.

Secondary cone crusher

There are two types of rock crushers in actual production, that is, primary crusher and secondary crusher. Secondary crushers mainly handle rocks of smaller particle size that have already been impacted and crushed from their original size. In recent years, with the rapid development of infrastructure projects, rock crushers have found more applications in various fields and industries, such as mining, chemical industry, road construction, metallurgy, construction and so on.

Working Principle Of Cone Crusher

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Technical Data

Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
