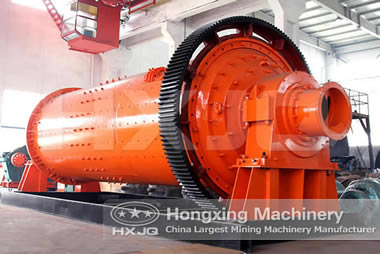

Wet type rod mill

Diameter:900 - 3200/mm
Length:1800 - 4500/mm
Shell rotation speed:18 - 38r/min
Feeding size:≤25 - ≤50/mm
Discharging size:0.833-0.147/mm
Power:18.5 - 630/kw
Total weight:5500 - 137000/kg

Inquiry Us

Working Principle of Rod Mill

The rod mill drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around in deceleration or through low speed synchronous motor driving directly peripheral big gears. The machine is equipped with appropriate grinding medium-steel bar, which is raised to a certain height under the centrifugal force and friction force and then cast down or discharged. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium and discharged for the next procedure by the overflow and the power produced by continuously feeding in materials.

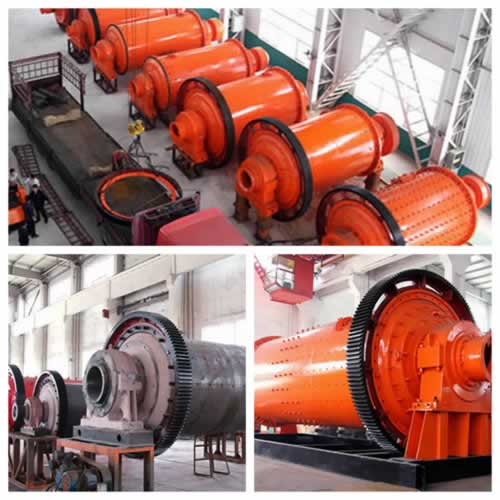

Wet type rod mill

Technical Data

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(kg)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5500
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 16800
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 29000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34800
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
