Lattice Type Ball Mill

Lattice-type ball mill, for grinding various ores and other materials, is widely used in mineral processing, construction and chemical industry and other national economic departments.

Inquiry Us

Lattice-type ball mill, for grinding various ores and other materials, is widely used in mineral processing, construction and chemical industry and other national economic departments.

Features Of Lattice Ball Mill:

1. The hollow axis adopts the cast steel and the lining can be replaced, the rotating big gear processes in the way of casting rolling gear

2. The barrel body is wearable well and bears wearable scale board

3. The machine run steadily and work reliably

4. Big crushing ratio, uniform final product size

5. Low operating cost

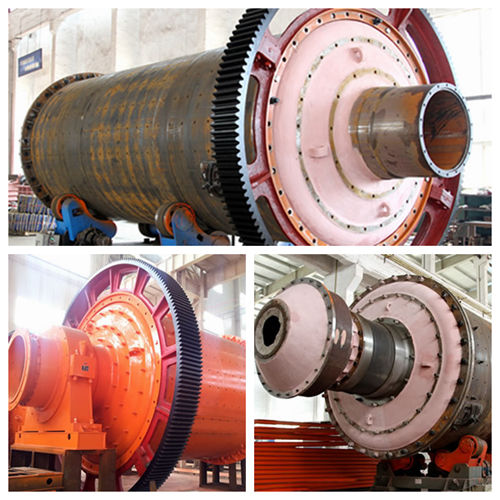

Lattice Type Ball Mill

Function Of Lattice Ball Mill:

Lattice type ball mill is the key equipment for grinding. It is widely used in cement, silicate products, new building materials, refractories, chemical fertilizer, black and non-ferrous metal ore-dressing and glass ceramics and other production industries. A variety of ores and other materials can be carried out dry grinding or wet grinding.

Lattice-type ball mill is used pervasively in mineral processing, construction and chemical industry, and other national economic sectors.

Working Principle Of Lattice Ball Mill:

The lattice type ball mill is a lind of horizontal tube-shaped rotating device,and it includes outer gear, the two positions. Materials from the feeding device enter the compound through the air shaft screw, and then evenly enter the  first warehouse, there are ladder liner or corrugated lining, different specifications steel ball. Rotating cylinder produces centrifugal force, which will be brought to a certain height.



Technical Data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
