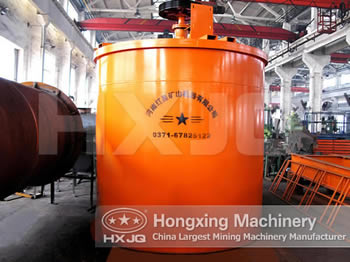

Ore Mixer
Ore mixer is also known as the stirred tank, and it is widely used for the mixing of non-metallic powder, small granular materials like coal, cement, gravel and clay, or mixing of various mining materials.
Ore mixer is also known as the stirred tank, and it is widely used for the mixing of non-metallic powder, small granular materials like coal, cement, gravel and clay, or mixing of various mining materials.
Ore mixer is also known as the stirred tank, and it is widely used for the mixing of non-metallic powder, small granular materials like coal, cement, gravel and clay, or mixing of various mining materials and potion ingredients which are mainly used for flotation.
This machine is set before the flotation machine to make the reagent and the ore pulp be fully mixed. This machine is suitable for mixing the ore pulp whose density is lower than 3.5 and the flotation reagents whose density is lower than 30%.
When the machine works, under the rotation of the impeller, the ore pulp and the reagents will have big and small circulation, and they will be evenly mixed, and the mixed suspension liquid will be discharged from the overflow port.
Mixing barrel is set before the flotation machine to make the reagent and the ore pulp be fully mixed. This machine is suitable for mixing the ore pulp whose density is lower than 3.5 and the flotation reagents whose density is lower than 30%.
When an agitation vat works, under the rotation of the impeller, the ore pulp and the reagents will have big and small circulation, and they will be evenly mixed, and the mixed suspension liquid will be discharged from the overflow port.
| Category | Specification Model |
Dimensions | Effective cubage(m³) |
Rotate speed（r/min） |
Motor power (kw) |
Dimensions （L×W×H） （mm） |
Total weight (kg) |
|
| Diameter （mm） |
Height （mm） |
|||||||
| Agitating tank |
XB-10×10 | 1000 | 1000 | 0.58 | 390 | 1.5 | 1130×1130×1521 | 1050 |
| XB-12×12 | 1200 | 1200 | 1.18 | 390 | 2.2 | 1130×1330×1721 | 1160 | |
| XB-15×15 | 1500 | 1500 | 2.2 | 280 | 3.0 | 1750×1640×2190 | 1270 | |
| XB-20×20 | 2000 | 2000 | 5.6 | 210 | 5.5 | 2380×2160×2850 | 1700 | |
| XB-25×25 | 2500 | 2500 | 11.2 | 190 | 7.5 | 2990×2720×3540 | 3500 | |
| XB-30×30 | 3000 | 3000 | 19 | 140 | 18.5 | 4030×3270×3010 | 5200 | |
| XB-35×35 | 3500 | 3500 | 29 | 230 | 30 | 3920×3740×4970 | 6630 | |
| XB-40×40 | 4000 | 4000 | 45 | 210 | 37 | 4520×4320×5570 | 7830 | |
| Lifting type |
XBT-10×15 | 1000 | 1500 | 1 | 510 | 2.2 | 1130×1130×2070 | 1250 |
| XBT-15×20 | 1500 | 2000 | 2.9 | 400 | 4 | 1636×1768×2785 | 1677 | |
| XBT-20×20 | 2000 | 2000 | 5.6 | 312 | 11 | 2180×2220×3015 | 3100 | |
| High- efficiency leaching tank |
XF-20×20 | 2000 | 2000 | 7.07 | 82.5 | 1.5 | 2032×2032×3595 | 2400 |
| XF-25×30 | 2500 | 3000 | 13.5 | 57.6 | 2.2 | 2532×2532×4152 | 3670 | |
| XF-30×30 | 3000 | 3000 | 22.97 | 50.0 | 2.2 | 3180×3180×4673 | 5340 | |
| XF-35×40 | 3500 | 4000 | 35.6 | 41.0 | 4.0 | 3685×3685×5314 | 7140 | |
| XF-40×45 | 4000 | 4500 | 52.78 | 33.5 | 4.0 | 4185×4185×5814 | 9300 | |
| XF-45×50 | 4500 | 5000 | 74.75 | 33.5 | 5.5 | 4685×4685×6466 | 10500 | |
| XF-50×56 | 5000 | 5600 | 102.1 | 30.6 | 5.5 | 5185×5185×6975 | 12300 | |
| XF-55×60 | 5500 | 6000 | 135.4 | 24.4 | 7.5 | 5670×5670×7569 | 13500 | |
