Raymond grinding mill
1. Low consumption
2. Reasonable price
3. Large capacity
4. Reliable function
1. Low consumption
2. Reasonable price
3. Large capacity
4. Reliable function

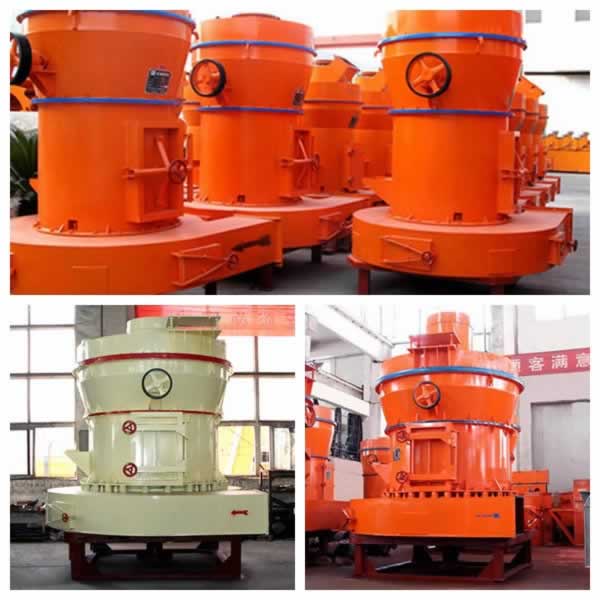

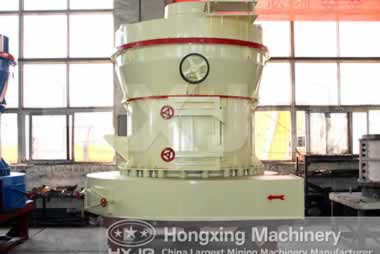

Improved Raymond mill has stable performance, strong adaptability, less environmental pollution and meets the requirement of energy-savings. Hongxing Machinery has researched and developed Raymond mill for 30 years, and during this period, we did a number of improvements on it. At present, relying on the knowledge summed up by the Institute of Raymond Mill, we develop our own new generation Raymond mill.
.jpg)
When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.
1, Start bucket elevator; 2. Start jaw crusher; 3. Start the analyzer; 4. Start the blower (empty load start, then load after normal running); 5. Start raymond mill host and electromagnetic vibrating feeder. Then raymond mill begins to grind.
| Model | 4525 | 4119 |
| Feeding Size(mm) | ≤30 | ≤25 |
| Output Size(mm) | 0.125- 0.044 |
0.125- 0.044 |
| Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
| Rotation Speed of Central Shaft(r/min) | 82 | 105 |
| Ring Diameter(mm) | 1770 | 1400 |
| Roller Diameter(mm) | 450 | 410 |
| Roller Height(mm) | 250 | 190 |
| Main Motor | y315m- 4-132 |
y280s- 4-75 |
| Fan Motor | y315m- 4-132 |
y250m- 4-75 |
| Analyzer Motor | y160m- 4-18.5 |
yct200- 4B-7.5 |
