Roller diameter:400 - 700/mm
Max. feeding size:≤25 - ≤100/mm
Capacity:5-10 to 10-100/th
Roller rotation speed:75 - 180r/min
Discharging size:2-8 to 0.5-30/mm
Supply Ability:20 Set/Sets per Month
Feature:simple structure, takes up smaller space
Roll crusher can be referred to as compression-type crushers. In the mining industry, it can be used to crush mines of medium or low hardness, rocks that have low or medium rigidity during mine selection, for cement, chemicals, and industrial production of building materials, among others. Its effect is more excellent than common crushing equipment.

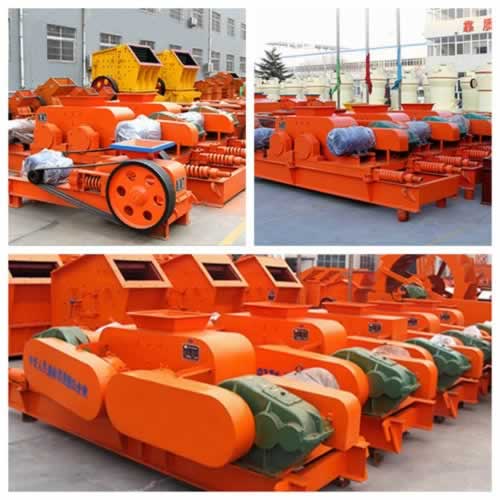

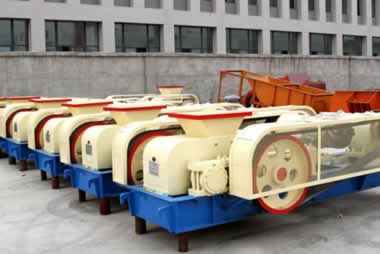

The double roll crusher is driven by the belt conveyor of the electric motor, and through a pair of middle reduction gear rolls, the fixed roll will rotate; and relying on a pair of long gears on the other side of the fixed roll, the movable roll is driven to move, and the two rolls will move in a relative motion in order to squeeze the materials.;
According to the granularity required by the users, the roller surface of the double roll crusher canbe divided into flat roll surface and surfacing roller surface. If the hardness of the material exceeds 200 Mpa, you can choose heavier models. According to users’ requirements, the transmission model of the double roll crusher can be divided into belt drive and coupling drive. The motor of the device can also be changed into diesel or gasoline according to the users’ requirements.
| Type | 2PG0425 | 2PG0640 | 2PG0740 | 2PG0850 | 2PG1060 | 2PG1260 | 2PG1560 |
| Roller diameter(mm) | Ф400 | Ф610 | Ф700 | Ф800 | Ф1000 | Ф1200 | Ф1500 |
| Roller width(mm) | 250 | 400 | 400 | 500 | 600 | 600 | 600 |
| Feeding Size(mm) | ≤25 | ≤25 | ≤25 | ≤25 | ≤30 | ≤30 | ≤30 |
| Discharging port(mm) | 2-8 | 2-8 | 2-8 | 2-8 | 2-10 | 2-10 | 2-10 |
| Capacity(t/h) | 5-10 | 10-20 | 15-30 | 20-40 | 30-50 | 40-70 | 60-110 |
| Engine model | Y132M-6 | Y180L-6 | Y200L-4 | Y225M-4 | Y250M-4 | Y315M-6 | Y315L-6 |
| Motor power(kw) | 5.5-2 | 15*2 | 30*2 | 45*2 | 55*2 | 75*2 | 110*2 |
