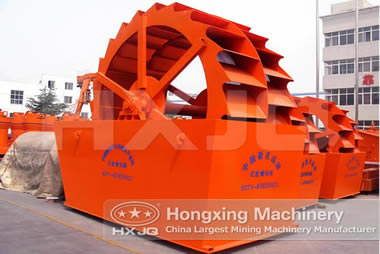

Mineral sand washer

Feed opening: 150×250 - 300×1300/mm
Processing capacity: 1-3 - 16-105/th
Max. Feeding size: 125 - 250/mm
Motor power: 5.5 - 55/kw
Total weight: 0.8 - 15.6/t
Supply Ability: 20 Set/Sets per Month
Feature: Simple structure, stable operation

Inquiry Us

Brief Introduction

Sand washing machine, which is used for washing away the stone powder and impurity in the sand made by the sand making machine, to increase the sand quality, is a machine to wash sand in coordination with the sand making machine. Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservancy and hydropower, cement mixture station and so on.

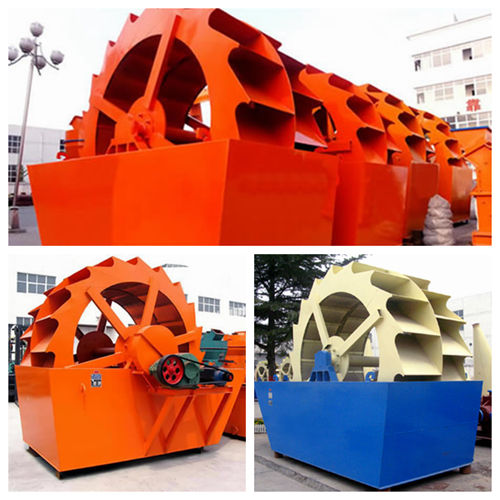

Mineral sand washer

Working Principle

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, roll with the impeller, and grind each other. The impurity covering the sand is washed away. At the same time, added more water, the strong water flow will take away low-weight waste from washing launder. Through the above process, the washing function is finished. The clean sand and stone are lifted up by vane. When it goes up slowly, the water begins to drop through the mesh and falls back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone go to the outer launder from the rotary impeller to finish the washing task.

Technical Data

Specification
XS2200
XS2600
XS2900
XS3500
Wheel bucket diameter
(mm)
2200
2600
2900
3500
Rotation Speed
(r/min)
1-2
1-2
0.8-1.5
0.8-1.2
Processing capacity (t/h)
15-30
20-50
50-100
120-200
Motor power
(kw)
4
5.5
7.5
11
Total weight
(kg)
4300
5600
8100
9900
Dimensions (L×W×H)
(mm)
3150×1910×2280
3520×2390×2690
3820×2640×3200
4420×2930×3800
